Showmobile®
Mobile Stage and Canopy

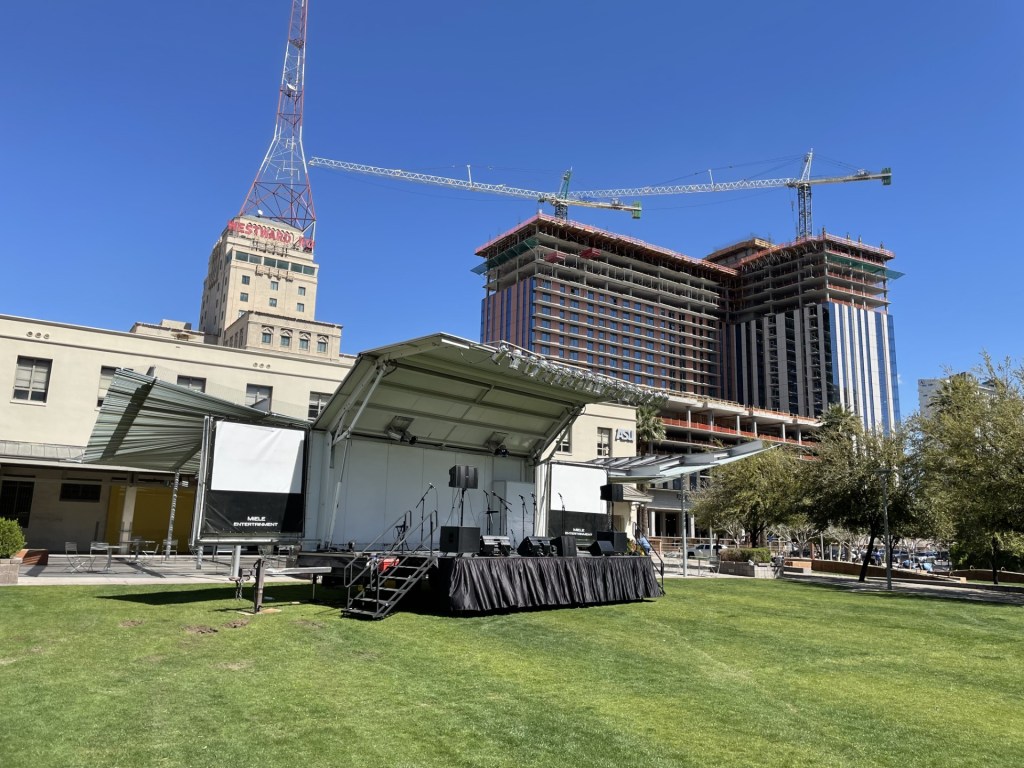

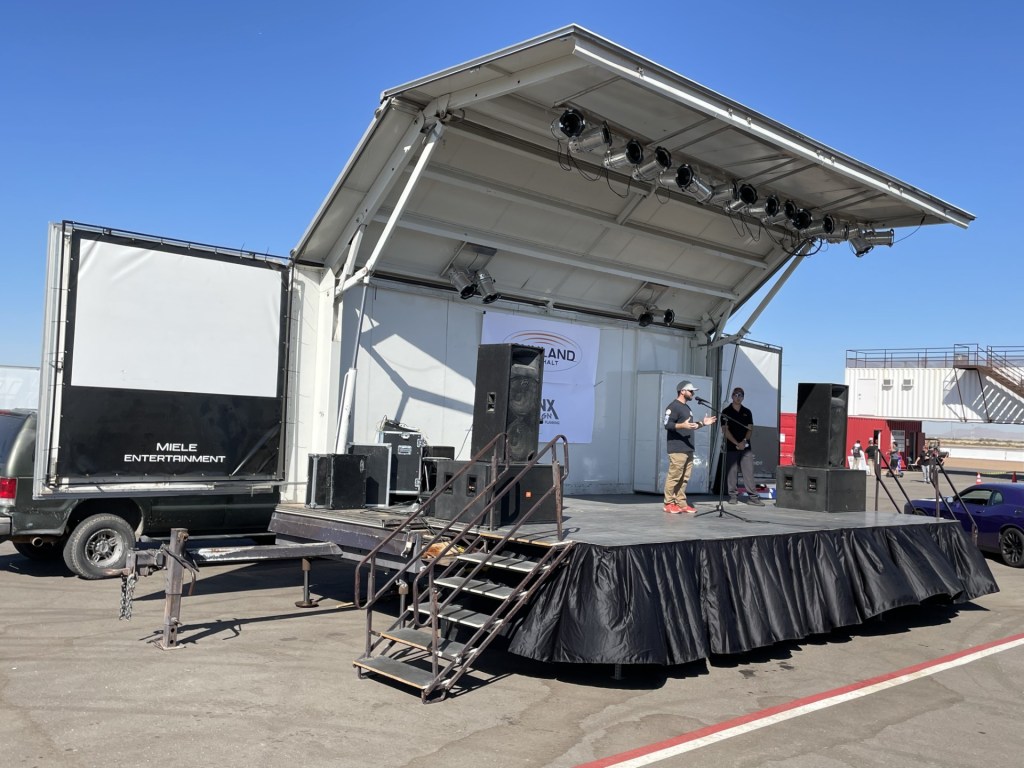

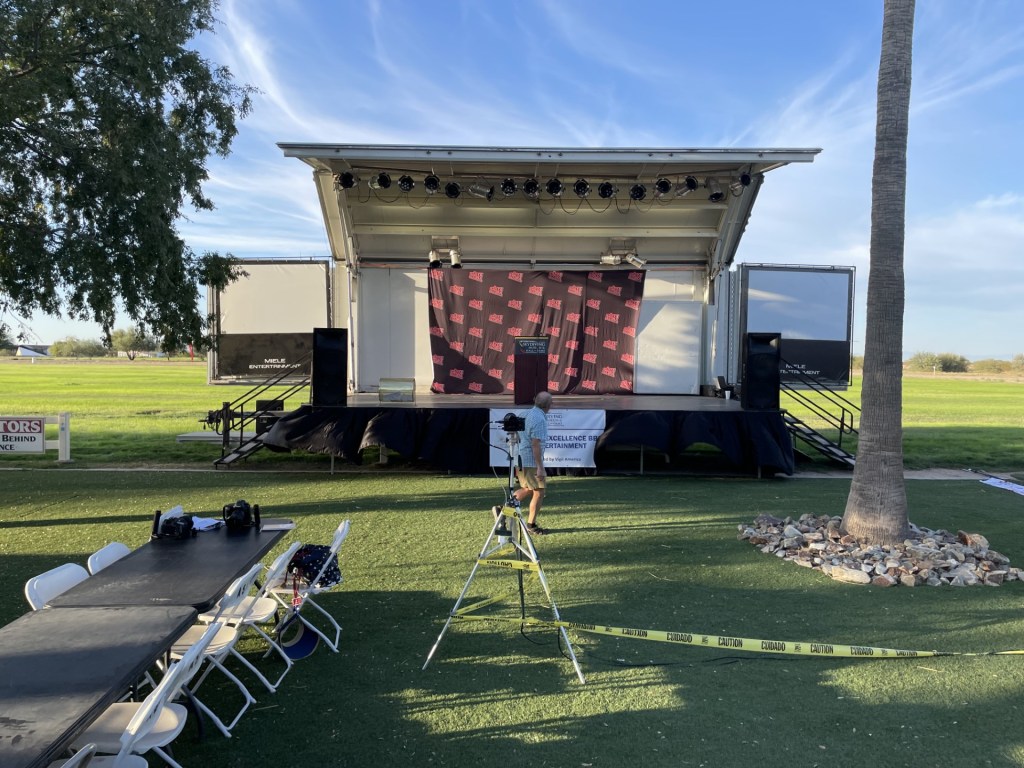

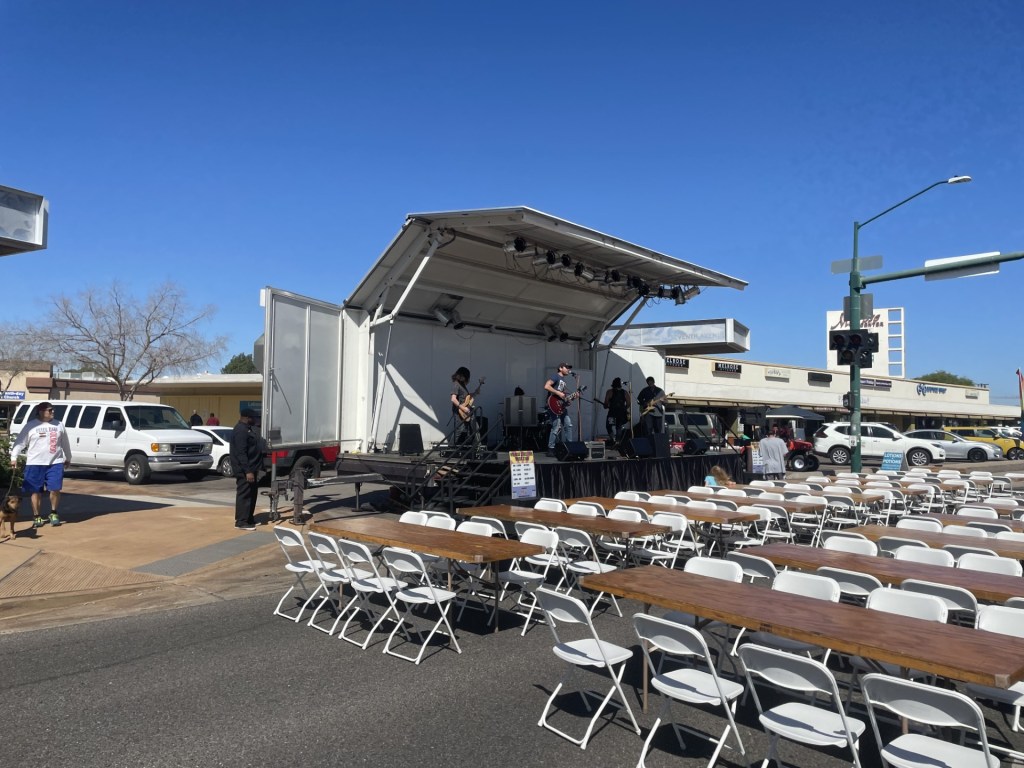

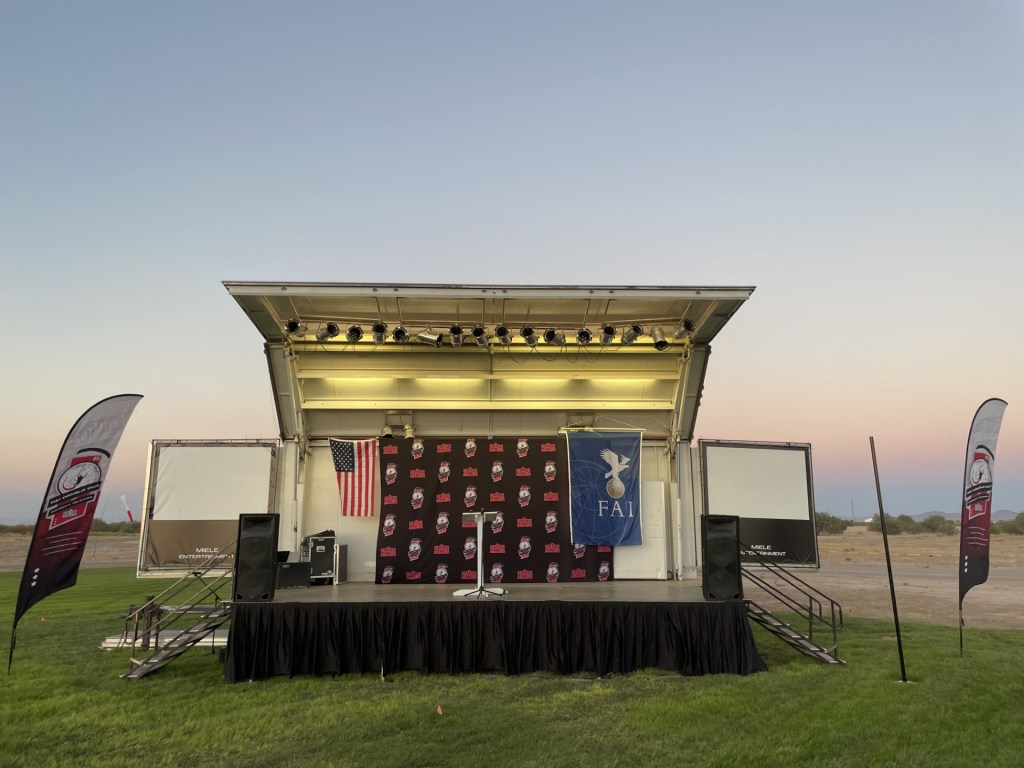

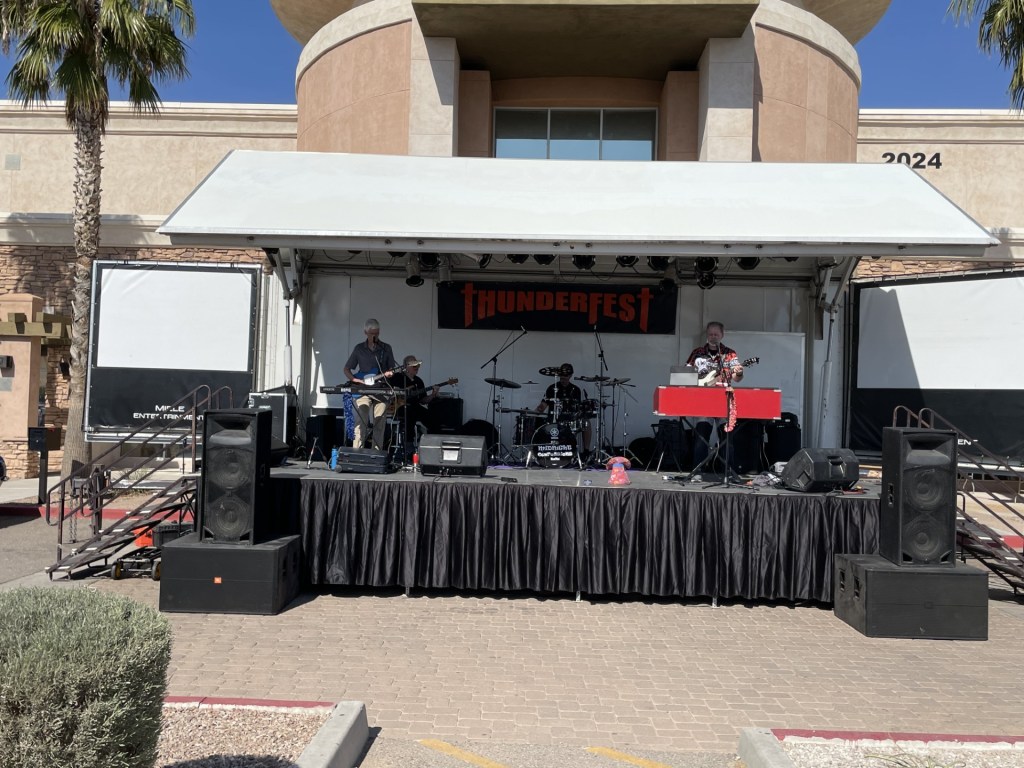

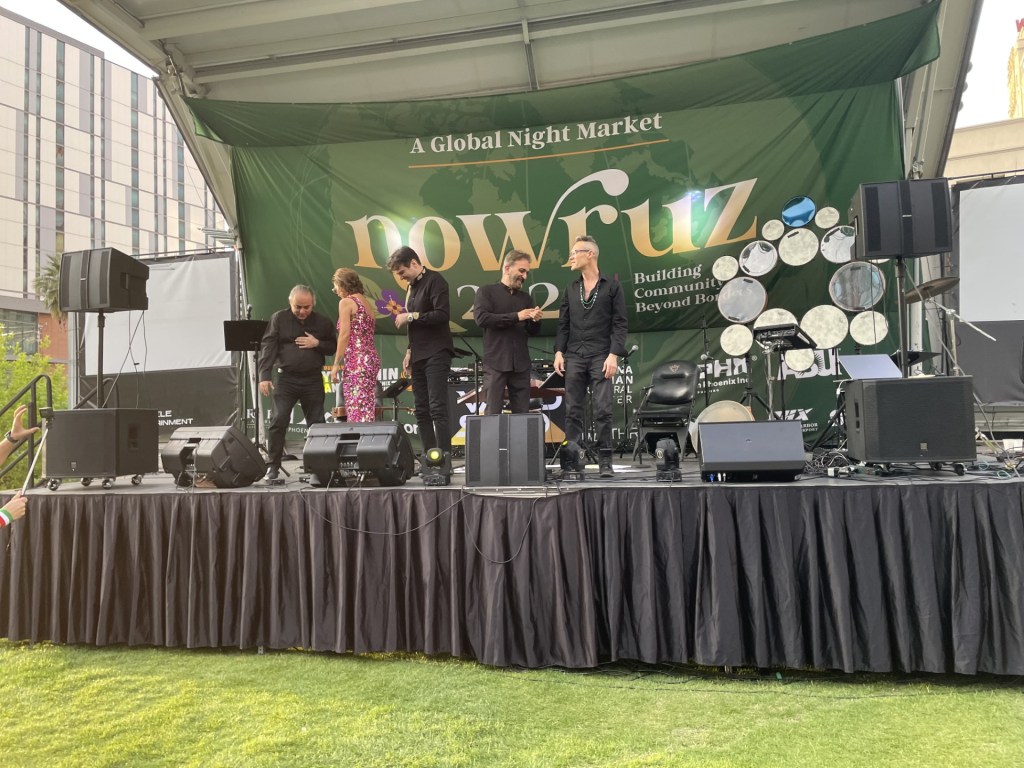

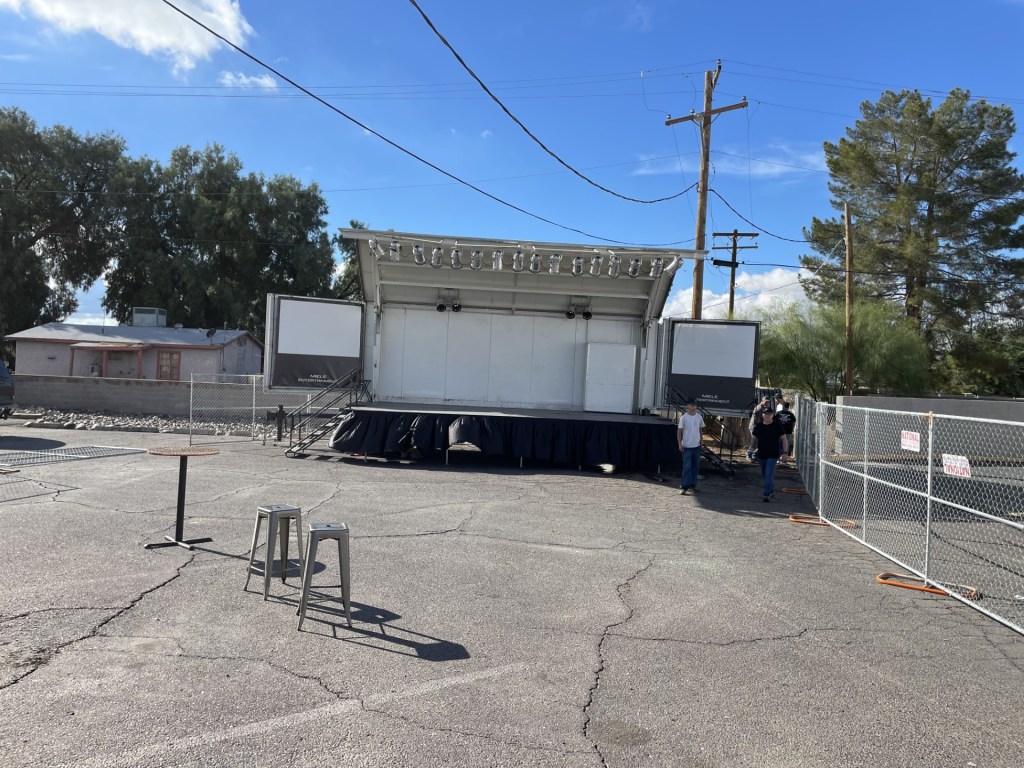

Showmobile® is an-all-in-one mobile performance system that creates a polished, high-profile performances environment for events
of all kinds. The Showmobile features a full-scale, thrust-style stage with a cantilevered canopy and a state-of-the-art acoustical shell
finished inside and outside. Set up and operation are simple and fast. When on site, the truck can unhitch and drive away.
• Wall surfaces are weather-resistant, acoustically reflective panels
• Decks surfaces are weather-resistant, slip-resistant Quadripple surface
• Extruded aluminum channels on the roof and canopy form a continuous gutter system for moisture drainage.
These channels create a watertight, dust-tight seal during transport.
• An Internal hydraulic system with wired remote deploys the stage and canopy which is leveled by jacks
• A 12-volt battery powers the hydraulic system
• A 110 VAC power center connects to an external 120 VAC power source and supplies LED lighting and electrical outlets
• Lockable storage compartments permit packing auxiliary equipment such as power cords, staging accessories, sound equipment,
and other necessities
• The roof and canopy can be lowered to the closed position and side doors closed and locked with the stage deck fully deployed.
Stage extensions, stairs, decorative skirts, and stage equipment can be left in place, protected from weather and vandals,
and ready for the next performance.
Performance Dimensions
Main stage floor …… . . . . . . . . . . . . . . . . . . . .28′ x 6′ 6” (8.5 m x 2 m)
Hydraulic stage floor .. . . . . . . . . . . . . . . . . . . . . 28′ x 8′ (8.5 m x 2.4 m)
Overall stage depth … . . . . . . . . . . . . . . . . . . . . . . . . . …14′ 6” (4.4 m)
Stage height from ground . . . . . . . . . . . . . . . . . . . . . . . …3′ 6” (1.07 m)
Canopy height at highest setting from stage surface . . …17′ 4” (5.3 m)
Canopy height at highest setting from ground surface . ..20′ 10” (6.4 m)
Upstage canopy height from stage surface . . . . . . . . . . ….9′ 3” (2.8 m)
Overall overhead canopy depth. . . . . . . . . . . . . . . . . . . . . . . 13′ 2” (4 m)
